VIVID INDUCTION HEATER – EHS/EHSU:16

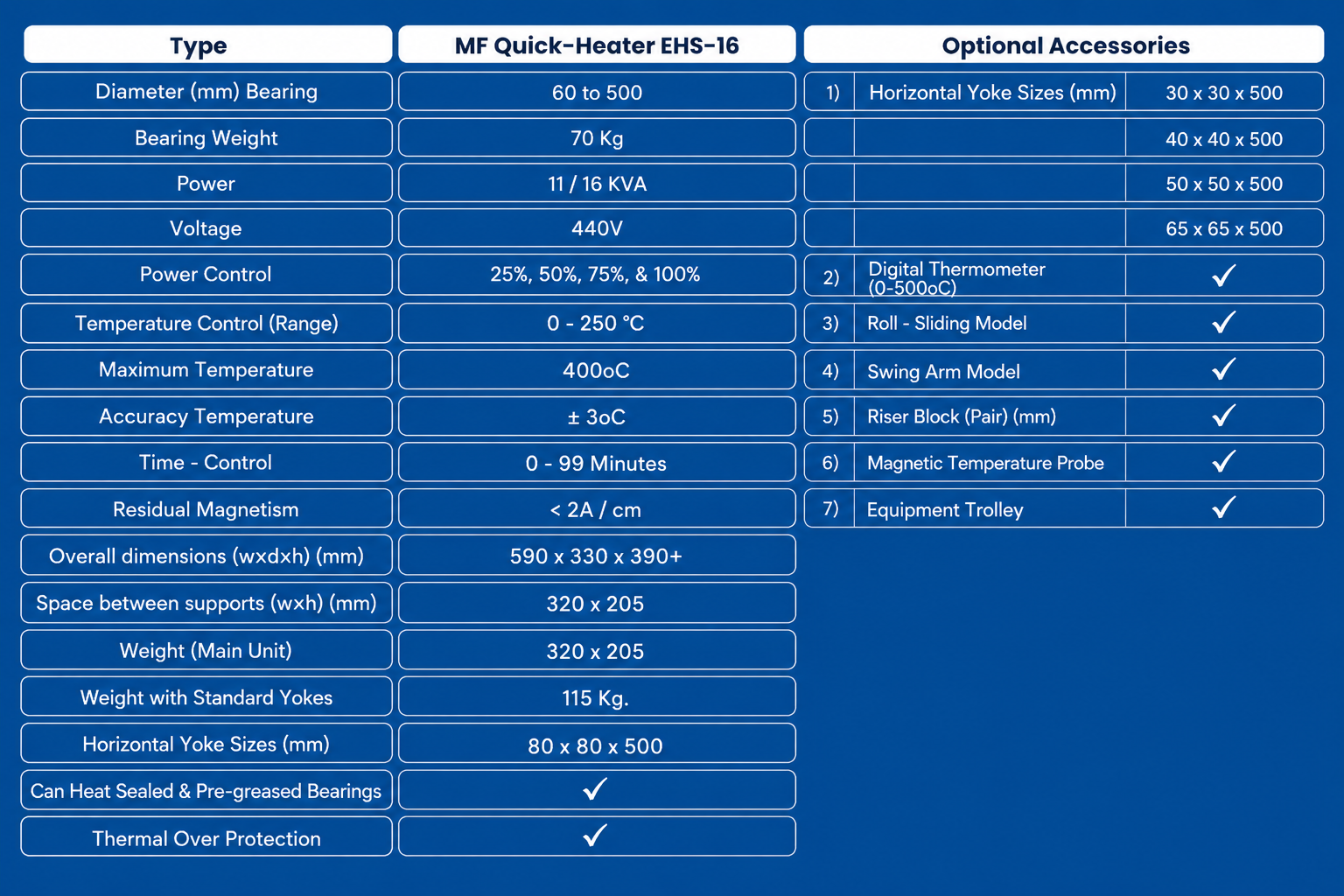

Model: 16 (11 / 16 KVA)

VIVID INDUCTION HEATER model EHS/EHSU:16 has heavy capacity to
heat the components. It has controls similar to EHS4, which are intelligent microcontroller based electronic control.
It weighs about 86 kg. It can heat a bearing of 40 kg to 50 kg to a
temperature of 100 °C in 6-7 minutes.
Model EHS/EHSU-16 is provided with a manual or automated
Roll-sliding Arrangement for the standard yoke 80x80x490 mm. The
Roll-Sliding Arrangement is so designed that the yoke gets lifted
mechanically or automatically rolls off from the vertical supports
without rubbing or damaging and scraping mating surfaces. This
arrangement provides additional safety, ease of operation and
helps to improve productivity
