INDUCTION HEATER – EHS/EHSU: 8(6/8kVA)

Model: 8 (6/8kVA)
VIVID INDUCTION HEATER model EHS/EHSU 8 (6/8KVA) has medium capacity to heat the components.
It is also intelligent micro controller based electronic controls. It weights about 44 kg. It can be easily carried to the site of operation, using specially designed handle provided on both sides. It can heat a bearing of 28 kg to 30 kg to temperature of 100°C in 5 minutes.
EHS/EHSU 8 (6/8KVA) consists of the control mounted on main body of Induction Heater and a remote control is provided for higher efficiency.
vivid induction heater
Enquire Now
  • Digital temperature control with precise monitoring and reprogrammable data storage upto 999
  • Automatic demagnetization after heating
  • Uniform induction heating for consistent results
  • Portable and rugged design for industrial use
  • Simultaneous Timer-based and temperature-based operation modes
  • Overheat protection and safety interlocks
  • User-friendly control panel with display with 4 feather touch button operation
  • Suitable for a wide range of component sizes

  • Mounting of bearings, gears, couplings, and sleeves
  • Maintenance workshops (railways, power plants, OEMs)
  • Motor and transformer manufacturing industries
  • Heavy engineering and steel plants
  • Pump and compressor assembly
  • Automotive and industrial service centers

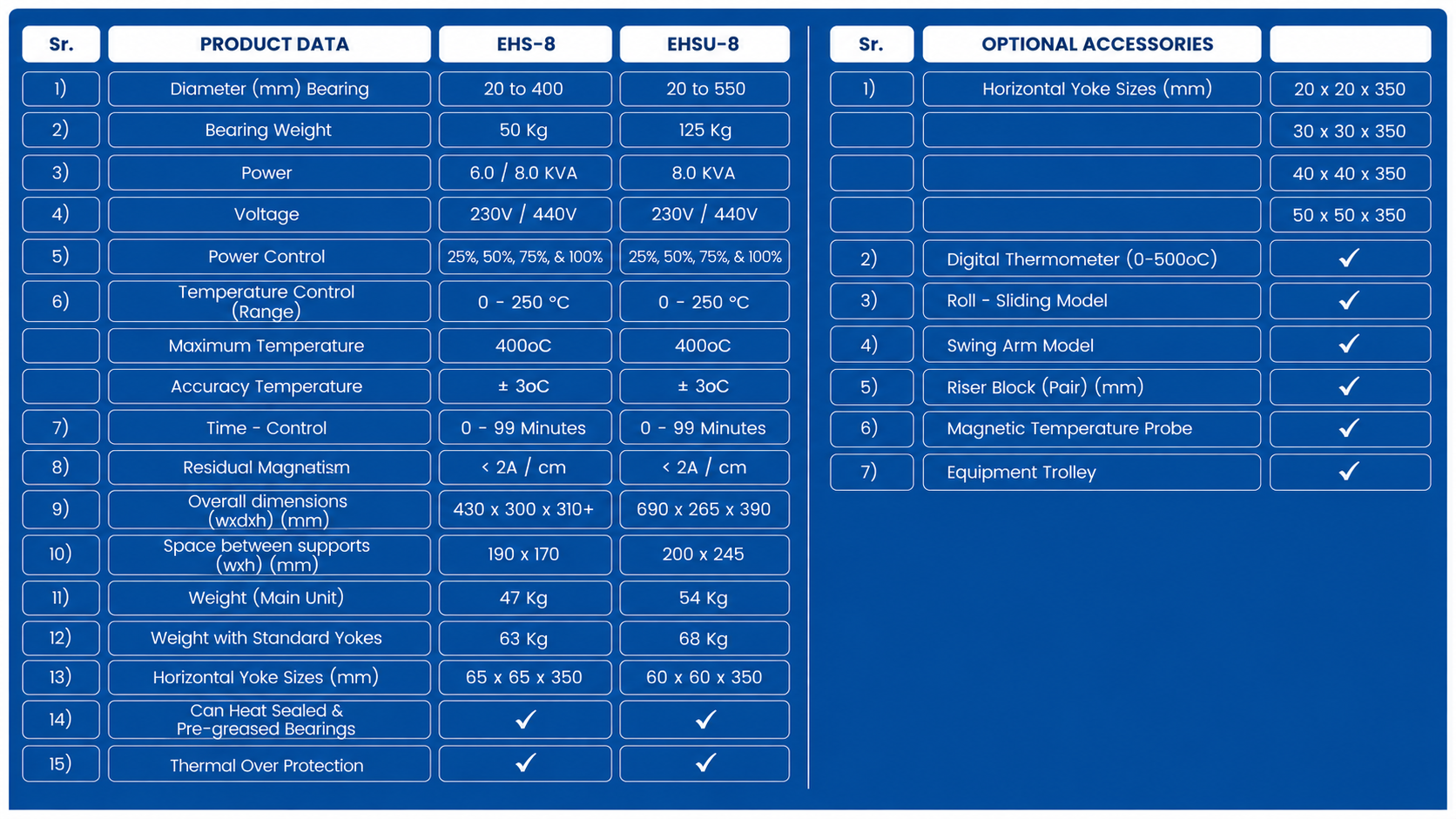

vivid induction heater 8
  • Fast and uniform heating compared to conventional methods
  • Improves bearing life by preventing mechanical stress during fitting
  • Energy-efficient and reduces operational costs
  • Safe operation with no open flame or oil heating
  • Minimizes damage to components due to controlled heating
  • Reduces downtime and increases productivity

get in touch

send us a message

Share your specifications and requirements with us. One of our experts will be in touch with you soon.
Contact Form Demo

FAQ

Frequently Asked Questions

Teams handling mid-to-larger bearings on a regular basis, where the EHS/EHSU:4 would be underpowered but full 16kVA capacity isn't necessary yet.

The automated version removes the yoke from the vertical supports without operator handling at all, which matters more in higher-throughput environments where the same technician is running multiple heating cycles per shift.

No — it uses the same intelligent microcontroller-based control logic as the EHS/EHSU:4, so operators already familiar with that model can run this one with no real learning curve.

That's exactly what the Roll-Sliding Arrangement is designed to prevent — it lifts or rolls the yoke away from the vertical supports without rubbing or scraping against mating surfaces.

It's suited to both, depending on the manual vs. automated Roll-Sliding configuration chosen — manual for lower-volume workshop use, automated for steadier production environments.

It comes down to your typical bearing weight and how often you're running heating cycles. Send us your specifications and we'll confirm which is the better fit before you order.
