Automatic High Voltage Tester – 15kV

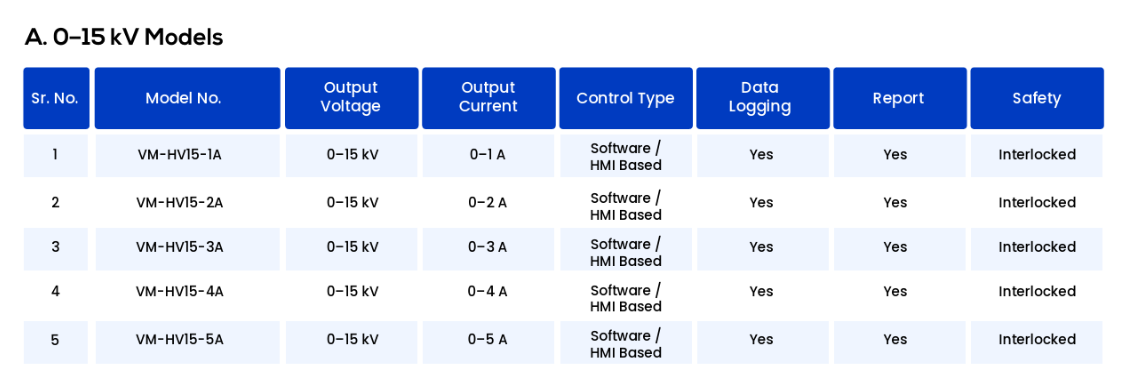

Models: VM-HV15-1A to VM-HV15-5A

Introducing the Automatic High Voltage Tester – 15kV, a fully computerized testing solution designed for accurate insulation and dielectric strength testing of electrical components. Engineered for reliability and operator safety, this system delivers controlled high-voltage output up to 15kV while ensuring consistent and repeatable test performance.

The tester features software/HMI-based operation with real-time voltage and current monitoring, integrated data logging, and automatic report generation. Its advanced safety barricading system with interlocks provides enhanced protection during testing, making it suitable for motors, stators, coils, transformers, cables, and insulation systems used in industrial production and quality control environments.

Enquire Now

⚙️

Computerized Control

Fully computerized operation with advanced software and HMI based controls.

📊

Real-Time Monitoring

Continuous monitoring of voltage, current and test status during operation.

📝

Data Logging

Automatically records and stores testing data for future reference.

📄

Report Generation

Generate professional reports instantly for documentation and quality control.

🛡️

Safety Protection

Integrated barricading and interlocked safety system for secure operation.

🏭

Industrial Design

Heavy-duty construction suitable for production and laboratory environments.

Benefits of Automatic High Voltage Tester – 15kV

Accurate Results

Ensures precise and repeatable high-voltage testing performance.

Higher Productivity

Automated testing reduces manual effort and increases efficiency.

Enhanced Safety

Integrated safety interlocks protect operators during testing.

Automatic Documentation

Instant report generation simplifies quality assurance processes.

Data Traceability

Built-in logging system maintains complete testing history and records.

Industrial Reliability

Rugged construction ensures dependable long-term operation.

Applications of Automatic High Voltage Tester – 15kV

Electric Motors

High-voltage and insulation testing of industrial motors and winding systems.

Stators & Coils

Testing of stators, coils and winding assemblies for insulation integrity.

Transformers

Verification of transformer insulation and dielectric withstand capability.

Cables

Quality and insulation testing of electrical cables and wiring systems.

Production Testing

Routine production line testing and quality assurance applications.

Research & Laboratories

Ideal for laboratory, research and development testing environments.

Technical Specifications of Automatic High Voltage Tester – 15kV

Parameter	Description
System Type	Fully computerized AC high voltage tester with software / HMI based control system
Display & Monitoring	Real-time digital monitoring of voltage, current, and test status with user-friendly interface
Data Logging	Integrated data logging system for secure storage and retrieval of test records
Report Generation	Automatic test report generation for quality assurance and documentation
Safety System	Advanced safety barricading with interlock protection for enhanced operator safety
Applications	Suitable for testing motors, stators, coils, transformers, cables, insulation systems, and other electrical components

Tab Content

This is a basic text element.

get in touch

send us a message

Share your specifications and requirements with us. One of our experts will be in touch with you soon.

FAQ

Frequently Asked Questions

It's a fully computerized tester for insulation and dielectric strength testing up to 15kV, built for motors, stators, coils, transformers, cables, and insulation systems used in production and quality control environments.

For most standard motors, coils, and cable insulation testing in production and lab settings, 15kV is typically sufficient. If your components are rated for higher dielectric withstand voltages or you're testing larger transformers, the 20kV or higher models in the range would be a better match.

Reports are generated automatically through the integrated software — the system logs voltage, current, and test status data throughout the cycle and produces documentation instantly, which removes manual compilation from your QA workflow.

It includes an integrated safety barricading system with interlocks, so the high-voltage circuit can't be engaged unless the enclosure is properly secured — an important safeguard given the voltages involved.

Yes — it's designed for both routine production testing and R&D or laboratory environments, so the same unit can support quality control on the line and more exploratory testing work.

A surge tester specifically evaluates turn-to-turn winding insulation using impulse waveforms, while the Automatic High Voltage Tester applies a sustained high-voltage dielectric withstand test. Many facilities use both — see our Digital Surge Tester range, or read Surge Voltage vs Test Voltage for the technical distinction.
