INDUCTION HEATER – EHML: 25/40

Model: 25/40(25 / 40 KVA)
VIVID Induction Heater model EHML-25/40 has heavy capacity to heat the components. It has controls similar to EHS16, which are intelligent microcontroller based electronic control. It weights about 300Kg. It can heat a bearing of 700 kg to temperature as per requirement in customized time.

Model EHML-25/40 is provided with manual or automated Roll-sliding Arrangement for the standard yoke 105 x 105 x 590 mm. The Roll-Sliding Arrangement is so designed that the yoke gets lifted mechanically or automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.
EHML induction heater
Enquire Now
  • Digital temperature control with precise monitoring and reprogrammable data storage upto 999
  • Automatic demagnetization after heating
  • Uniform induction heating for consistent results
  • Portable and rugged design for industrial use
  • Simultaneous Timer-based and temperature-based operation modes
  • Overheat protection and safety interlocks
  • User-friendly control panel with display with 4 feather touch button operation
  • Suitable for a wide range of component sizes

  • Mounting of bearings, gears, couplings, and sleeves
  • Maintenance workshops (railways, power plants, OEMs)
  • Motor and transformer manufacturing industries
  • Heavy engineering and steel plants
  • Pump and compressor assembly
  • Automotive and industrial service centers

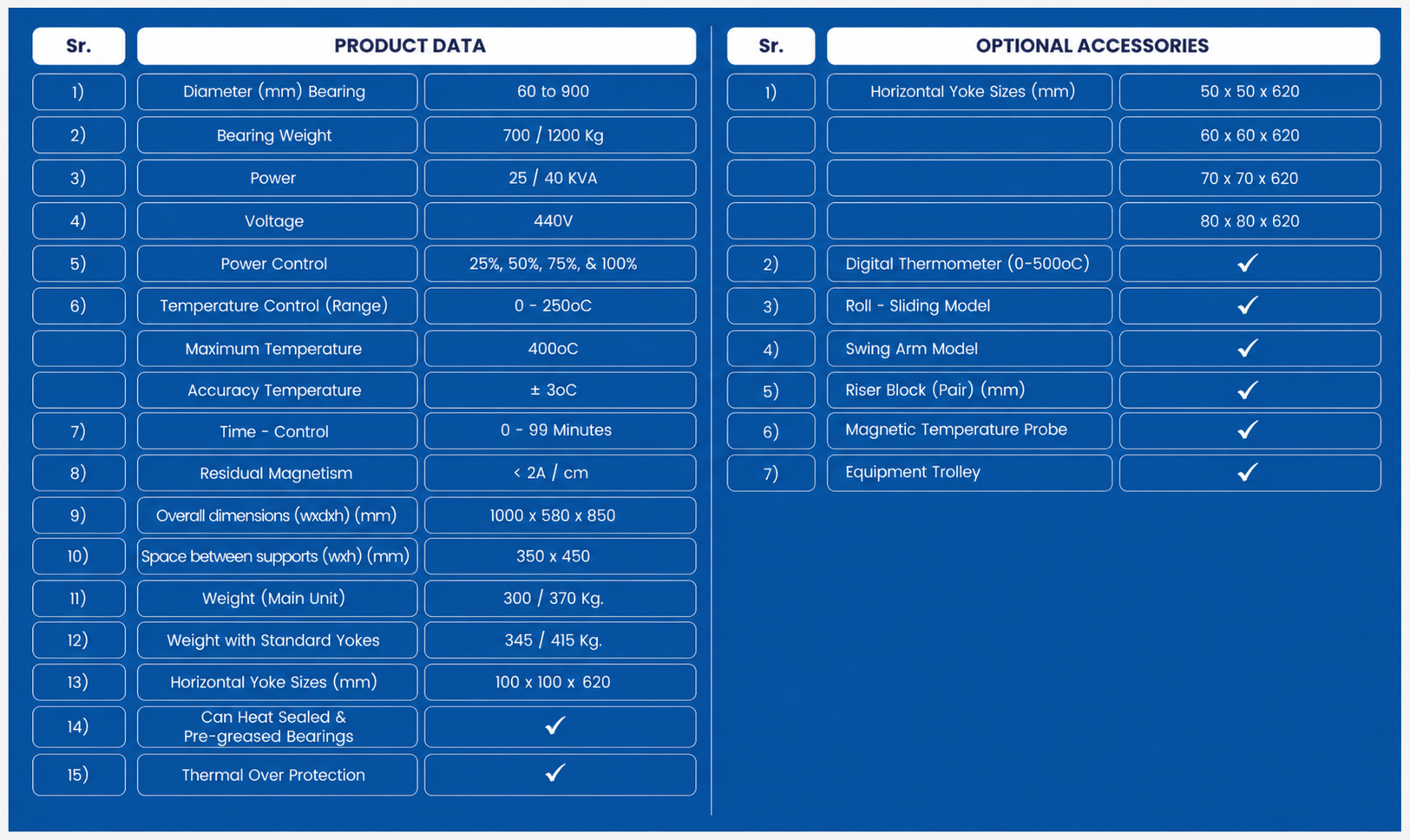

EHML Technical specifications
  • Fast and uniform heating compared to conventional methods
  • Improves bearing life by preventing mechanical stress during fitting
  • Energy-efficient and reduces operational costs
  • Safe operation with no open flame or oil heating
  • Minimizes damage to components due to controlled heating
  • Reduces downtime and increases productivity

get in touch

send us a message

Share your specifications and requirements with us. One of our experts will be in touch with you soon.
Contact Form Demo

FAQ

Frequently Asked Questions

Beyond the higher power rating, it's built around a larger yoke (105 x 105 x 590 mm vs. 80 x 80 x 490 mm on the EHS series), because components at this weight class need a physically larger heating window, not just more power.

It heats to temperature as per requirement in customized time, meaning the cycle is tuned to your specific component rather than running a single fixed preset — important at this scale, where different alloys and part geometries heat differently.

It's not designed as a portable, carry-between-stations unit like the EHS/EHSU:4 — it's meant to be positioned at a fixed station suited to heavy component handling, typically with lifting equipment nearby.

Undersized units struggle to heat large components evenly, which can mean longer cycle times, uneven expansion, and a higher chance of installation issues. This model exists specifically so you're not pushing a smaller unit past its intended capacity.

Yes — for bearings or shafts that fall outside standard sizing, our team can advise on a tailored configuration rather than fitting your application to a fixed spec.

It's the standard heavy-duty option before a fully custom build becomes necessary — see the complete lineup on our Bearing Induction Heaters page to compare against the EHS/EHSU:16.
