Surge Testing for Wind Turbine Generators: Complete Guide [2026]

A wind turbine generator sits 80 to 120 metres above ground in a nacelle accessible only by a confined internal ladder or a service crane. When its stator winding fails in service — from a turn-to-turn insulation fault that was present but undetected before commissioning, or from insulation that degraded silently over years of thermal cycling — the consequences are not a routine maintenance call. They are a crane mobilisation, a turbine offline for weeks, and a repair or replacement cost that runs to hundreds of thousands of pounds, euros, or dollars. Surge testing for wind turbine generator windings is the quality gate that catches these faults before they become field failures — at the manufacturing stage, before rewind, and after maintenance. This guide covers exactly what the test involves, which winding voltage classes require which KV rating, the complete test protocol, and the Vivid Metrawatt instruments confirmed for wind energy generator applications.

---

---

1. Why Surge Testing Is Critical in Wind Energy — The Cost of Getting It Wrong

Wind turbine generators operate under conditions that are punishing for winding insulation. The combination of factors is unique among power generation equipment:

• Inaccessibility — nacelle-mounted generators are reachable only by confined tower climb or crane lift. Any maintenance event involves significant mobilisation cost, time, and personnel safety risk — particularly for offshore turbines.
• Variable load cycling — wind-driven generators operate under continuously varying power output, creating thermal cycles in the winding insulation that accelerate insulation ageing through expansion and contraction stress.
• Vibration — the nacelle environment subjects the generator stator to continuous mechanical vibration from rotor rotation, drivetrain dynamics, and tower sway, which can cause micro-abrasion of the insulation surface over time.
• Moisture and humidity — particularly in offshore and coastal wind farms, the nacelle environment contains elevated humidity that can penetrate winding insulation, reduce insulation resistance, and accelerate dielectric breakdown.
• High operational uptime expectation — modern wind farms are expected to achieve availability above 95%. A generator failure with a six-week repair timeline significantly impacts annual energy production and therefore revenue.

In this operational context, the financial and operational cost of an undetected turn-to-turn insulation fault — one that passes a standard resistance check and a Megger test but fails in service six months after commissioning — is vastly greater than the cost of a comprehensive surge test at the manufacturing, rewind, or commissioning stage.

The turn-to-turn insulation fault is the failure mode that only surge testing reliably detects. It is also the most common early-stage winding failure mode in both newly wound and service-aged generator stators. The surge test is the quality gate that stands between a detectable defect and a multi-week turbine outage.

---

2. Understanding Wind Turbine Generator Windings and Their Voltage Classes

Wind turbines generate electricity through a generator whose stator winding produces the AC output. The voltage class of that winding determines the surge tester KV rating required to perform a meaningful and standards-compliant test. Understanding this relationship is the foundation of correct equipment selection.

Direct Drive Generators (PMSG — Permanent Magnet Synchronous Generators)

Common in modern large wind turbines (2MW–15MW class), direct drive PMSGs eliminate the gearbox and connect the rotor directly to the generator shaft. Their stator windings typically operate at medium voltages — commonly in the 690V to 3.3KV range at the generator terminals, stepped up by a transformer for grid connection. At 690V, the required surge test voltage (2 × 690V + 1000V = 2,380V) is within the 3KV range. At 3.3KV, the required surge test voltage (2 × 3300V + 1000V = 7,600V) places it firmly in the 10KV to 15KV class.

Doubly-Fed Induction Generators (DFIG)

DFIGs are widely used in variable-speed wind turbines, particularly in the 1.5MW–3.5MW class. The stator winding connects directly to the grid — typically at 690V to 3.3KV at the generator terminals. Both stator and rotor windings require surge testing, though at different voltage levels. The stator winding test typically requires the 10KV to 15KV class; the rotor winding (connected to the converter) at lower voltage may fall in the 3KV to 6KV range depending on the design.

Asynchronous (Induction) Generators

Used in smaller and some legacy turbines, operating typically at 400V to 690V. Surge test voltage requirement falls within the 3KV range.

Large-Scale Offshore Generators (5MW–15MW+)

Offshore turbines of the latest generation — 5MW, 8MW, 12MW, and 15MW class — typically employ generators with stator voltages of 6.6KV to 11KV at the generator terminals. At 6.6KV, the required surge test voltage is approximately 14,200V — confirmed within the 15KV model’s range. At 11KV, the required test voltage is approximately 23,000V — requiring the 25KV model.

---

3. What Surge Testing Detects in Generator Windings

The digital surge tester applies a controlled, fast-rising high-voltage impulse to the generator stator winding and compares the resulting oscillating waveform against a reference phase or stored master waveform. In a healthy, balanced stator, the waveforms from each phase are identical — they superimpose on the display. Any deviation indicates a fault within the winding.

In wind turbine generator stator windings specifically, surge testing reliably detects:

• Turn-to-turn insulation faults — the most critical target; contact between adjacent wire turns within the same coil, caused by insulation damage during winding, transport, thermal ageing, or vibration abrasion. These faults produce localised heat under operating conditions, accelerating further degradation and leading to phase-to-phase or phase-to-ground failure if undetected.
• Coil-to-coil insulation weakness — degradation of insulation between adjacent coils within the same phase group, which can develop into inter-coil shorts under operating voltage stress.
• Winding imbalance — asymmetry in the turn count, conductor gauge, or coil positioning between phases, which causes unbalanced output voltage and current — detectable as a waveform frequency or amplitude difference between phases.
• Incorrect winding connections — reversed polarity coils, transposed phase connections, or mis-wound coils produce distinctive asymmetric waveform patterns that are immediately identifiable.
• Early-stage insulation degradation — weakened insulation that has not yet broken down to ground but shows increased EAR (Error Area Ratio) values compared to the baseline, indicating an insulation system approaching failure threshold.
• Form-wound coil defects — in large generators using form-wound copper bar coils (as opposed to random-wound wire), damage to the groundwall insulation at slot entry points, end-winding crossings, or at the top/bottom bar interface can be detected through waveform deviation.

What surge testing does not detect — and what must be covered by complementary tests:

• Ground wall insulation resistance (Megger test)
• Ground wall insulation withstand capability (DC Hi-Pot test)
• Bearing condition (vibration analysis)
• Partial discharge activity in the slot insulation (partial discharge test — a separate specialised measurement)

For a detailed explanation of how EAR quantifies the waveform deviation and produces an objective pass/fail result, see our guide on what is Error Area Ratio (EAR) in surge testing.

---

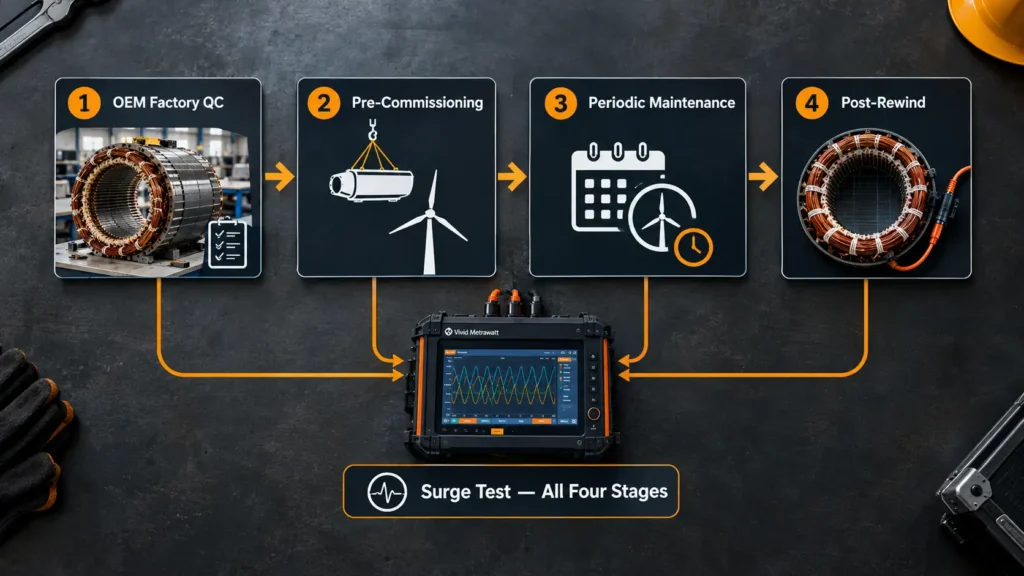

4. When to Surge Test: Four Critical Points in the Turbine Life Cycle

For wind turbine generator windings, there are four distinct points in the component’s life cycle where surge testing adds maximum value — each with a different purpose and a different cost-of-failure consequence if skipped.

Stage 1: OEM Manufacturing — End-of-Line Quality Control

Every generator stator winding should be surge tested before the generator is assembled into the nacelle. This is the highest-leverage test point — the cost of a surge test at the factory, before the stator leaves the production floor, is a fraction of the cost of a generator failure in the field. OEM surge testing is required by IEC 60034-15 (rotating electrical machines — impulse voltage withstand levels) and IEC 60034-1 (routine test requirements). The test catches winding faults introduced during the winding process: insulation nicks from conductor handling, insufficient turn insulation coverage, incorrect coil connections.

Stage 2: Pre-Commissioning / Site Acceptance Testing

After the generator has been transported to site, lifted into the nacelle, and connected, but before the turbine is energised for the first time — a surge test confirms that transport and installation have not introduced new insulation damage. Transport vibration, thermal shock, and mechanical handling during installation can all degrade winding insulation that was intact when the stator left the factory. A pre-commissioning surge test provides the baseline waveform that will serve as the reference for all future comparison tests.

Stage 3: Periodic Maintenance Testing

During scheduled maintenance intervals — typically annual or biennial for wind turbine generators — a surge test conducted with the generator offline compares current waveforms against the commissioning baseline. A change in the EAR value or a visible waveform shift between maintenance intervals indicates developing insulation degradation. This is the predictive maintenance application of surge testing: catching a deteriorating winding before it becomes a failed winding, and scheduling a planned rewind during a low-wind period rather than responding to an unplanned failure during peak generation season.

Stage 4: Post-Rewind Quality Verification

After any generator stator rewind — whether following a winding failure, scheduled life extension, or voltage class modification — the rewound stator must pass a surge test before it is reinstalled in the nacelle. The rewinding process introduces the highest risk of turn-to-turn insulation damage in a winding’s life: wire handling, slot insertion, end-winding forming, and varnish impregnation all carry the possibility of insulation damage between turns. No rewound stator should be reinstalled in a wind turbine without passing a surge test at the appropriate KV level for its voltage class.

---

5. Choosing the Right KV Rating for Your Wind Turbine Generator

The surge test voltage is calculated from the generator’s rated stator winding voltage, using the standard formula from IEEE 522:

The surge tester’s rated KV must comfortably exceed the calculated test voltage. The table below maps the most common wind turbine generator stator voltage classes to the appropriate Vivid Metrawatt model:

Generator Stator Voltage	Turbine Class / Type	Calc. Test Voltage	Required KV Rating	Vivid Metrawatt Model
400V – 690V AC	Small onshore turbines; asynchronous generators	1,800V – 2,380V	3KV	VM LCD-3AND (3KV)
3.3KV AC	Medium onshore turbines; DFIG stator; direct drive PMSG	~7,600V	10KV	VM-10K or VM-10KHR (with Hi-Pot)
6.6KV AC	Large onshore and offshore turbines; 3MW–8MW class	~14,200V	15KV	VM-15K or VM-15KHR (with Hi-Pot)
11KV AC	Very large offshore turbines; 8MW–15MW class	~23,000V	25KV	VM-25K or VM-25KHR (with DC Hi-Pot)
13.8KV AC	Largest offshore turbines; specialised generator designs	~28,600V	30KV – 40KV	VM-30K / VM-40K or VM-30KHR / VM-40KHR (with DC Hi-Pot)

---

6. Vivid Metrawatt Models Confirmed for Wind Turbine Generator Testing

The following Vivid Metrawatt models are confirmed for testing AC motors, stators, armatures, transformers, alternators, and other wound electrical components — the application set that encompasses wind turbine generator stator windings across all voltage classes.

10KV / 12KV / 15KV Digital Surge Tester — VM-10K / VM-12K / VM-15K

Product page: 10KV, 12KV & 15KV Digital Surge Tester

Confirmed for precise testing of coils and windings in AC rotating machines accommodating voltages up to 6.6KV. This covers the 3.3KV and 6.6KV stator voltage classes that represent the majority of current large onshore and offshore wind turbine generators. Three voltage sub-models (VM-10K, VM-12K, VM-15K) allow selection of the appropriate test voltage for the specific stator voltage class:

• 3.3KV generator stator → VM-10K
• 4.16KV–5KV stator → VM-12K
• 6.6KV stator → VM-15K

Confirmed features: Embedded industrial PC; 10-inch touch screen; LABVIEW software integration; infinite model storage; dual-feature waveform comparison (master waveform or simultaneous two-winding); colour-coded waveforms; automatic report generation in MS Word; comprehensive job work management.

10KV / 12KV / 15KV Surge Tester with Hi-Pot — VM-10KHR / VM-12KHR / VM-15KHR

Product page: 10KV, 12KV & 15KV Digital Surge Tester with Hi-Pot Test

Adds integrated DC Hi-Pot testing to the full surge test capability of the VM-10K/12K/15K series. For wind turbine generator acceptance testing where both turn-to-turn insulation (surge) and ground wall insulation withstand (Hi-Pot) results are required in the test certificate, this combined instrument eliminates the need for two separate setups. This is the model to specify when your acceptance test protocol — or the turbine OEM’s requirements — mandates both test types on a single instrument.

25KV / 30KV / 40KV Digital Surge Tester — VM-25K / VM-30K / VM-40K

Product page: 25KV, 30KV & 40KV Digital Surge Tester

Confirmed for precise testing of coils and windings in AC rotating machines accommodating voltages up to 13.8KV. This covers the 11KV to 13.8KV stator voltage classes found in the largest offshore wind turbine generators — 8MW to 15MW class turbines. The 80KV-rated test leads and footswitch for hands-free operation are confirmed features across this range.

Confirmed features: 10-inch touch screen; embedded industrial PC; LABVIEW; infinite model storage; colour-coded waveforms; automatic report generation; footswitch; test leads insulated up to 80KV.

25KV / 30KV / 40KV Digital Surge Tester with DC Hi-Pot — VM-25KHR / VM-30KHR / VM-40KHR

Product page: 25KV, 30KV & 40KV Digital Surge Tester with DC Hi-Pot

Adds integrated DC Hi-Pot to the 25KV–40KV surge test capability. For the largest offshore wind turbine generator stators — where acceptance test protocols are the most stringent and where both surge and Hi-Pot results are required in the formal acceptance certificate — the combined instrument provides both tests in a single connected setup at 80KV insulated lead safety rating.

For the complete digital surge tester range including all KV classes, visit the Vivid Metrawatt Digital Surge Tester page.

---

7. The Complete Surge Test Protocol for Wind Turbine Generator Stators

The following protocol applies to surge testing of wind turbine generator stator windings — whether at OEM manufacturing, pre-commissioning, periodic maintenance, or post-rewind stage.

Step 1: Visual Inspection

Before any electrical test is applied:

• Inspect the stator for visible signs of winding damage — insulation cracking, discolouration, char marks, mechanical impact, or evidence of moisture ingress
• Verify that all winding connections match the design specification — phase connections, neutral connections, and any parallel path connections
• Confirm that all foreign objects, assembly tools, and debris have been removed from the stator bore and end-winding region
• Check that test connection points are clean and accessible

Step 2: Insulation Resistance Test (Megger)

Before applying high-voltage surge testing, confirm the ground wall insulation condition with an insulation resistance (Megger) test. A severely degraded or wet ground wall insulation may fail during surge testing, causing additional damage and producing a misleading test result. The Megger test confirms the stator is in a condition suitable for HV testing. For the complete Megger test procedure, see our guide on the difference between Megger and surge test for windings.

Step 3: Surge Test Setup

• Select the correct Vivid Metrawatt model for the stator’s rated voltage class (see Section 5)
• Calculate the test voltage: 2 × V_rated + 1000V (per IEEE 522 routine test)
• Set the instrument to the calculated test voltage — do not apply the instrument’s maximum rated KV to a winding that does not require it
• Connect the test leads to the stator phase terminals (U, V, W) and ensure the instrument earth connection is secure
• Enable the footswitch if available — this allows hands-free test initiation while the operator holds the test probes

Step 4: Perform the Surge Test

• For a three-phase stator: the instrument applies the surge impulse and simultaneously compares the waveforms from all three phases, or compares each phase against a stored master waveform
• Monitor the colour-coded waveform display — in a healthy winding, all three phase traces should superimpose without visible deviation
• The instrument calculates the EAR (Error Area Ratio) automatically — a higher EAR indicates greater deviation from the reference, signalling a potential insulation fault
• For a commissioning baseline test: record and store the waveform display and EAR value for all three phases — this becomes the reference for all future comparison tests on this specific generator

Step 5: Interpret the Result

• PASS — waveforms superimpose; EAR within acceptance threshold; no phase deviation. The winding’s turn-to-turn insulation is intact.
• FAIL — visible waveform deviation between phases; EAR above acceptance threshold; one phase shows collapsed, shifted, or frequency-altered waveform. A turn-to-turn or coil-to-coil insulation fault is present. The stator must not be installed or energised until the fault is investigated and corrected.

Step 6: DC Hi-Pot Test (Where Required)

Where the test protocol or acceptance certificate requires ground wall insulation withstand testing in addition to surge testing, apply the DC Hi-Pot test after the surge test has been passed. Never apply Hi-Pot before surge testing — a turn-to-turn fault, if present, may be aggravated by the sustained Hi-Pot voltage and propagate into a phase-to-ground breakdown, damaging the winding further. For more on the correct test sequence and the relationship between surge and Hi-Pot testing, see our guide on surge tester vs Hi-Pot tester.

Step 7: Generate and Store the Test Report

All Vivid Metrawatt digital surge testers generate automatic test reports in MS Word via LABVIEW software. The report includes: test waveform data, EAR result, test voltage applied, date and time stamp, and component identification. For a wind turbine generator:

• Record the turbine serial number, generator model, and stator serial number on the report
• Store a digital copy in the turbine’s maintenance file
• For offshore turbines, the report forms part of the certification package submitted to the certifying body or turbine OEM
• For maintenance tests, compare current EAR values against the commissioning baseline and record any change as a trend value

---

8. Surge Testing vs Megger vs Hi-Pot: How They Fit Together

A complete wind turbine generator stator insulation qualification protocol requires three distinct test types, each addressing a different insulation structure. None can substitute for the others.

Test	What It Tests	What It Detects	What It Cannot Detect	Sequence
Megger (IR Test)	Ground wall insulation resistance — winding to stator frame	Moisture ingress; contamination; gross insulation deterioration	Turn-to-turn faults; coil-to-coil weakness	First
Surge Test	Turn-to-turn insulation — inside the winding coil	Turn-to-turn shorts; coil-to-coil faults; winding imbalance; wrong connections	Ground wall insulation condition or withstand	Second
DC Hi-Pot	Ground wall insulation withstand — winding to frame	Ground wall insulation breakdown under sustained overvoltage	Turn-to-turn faults; winding balance	Third

For a detailed explanation of the AC HiPot vs DC HiPot choice and when each type is appropriate for generator winding testing, see our guide on AC Hi-Pot vs DC Hi-Pot testing. For the complete waveform interpretation framework — including what a fault signature looks like versus a healthy winding — see our guide on waveform analysis in surge testing.

---

9. Documentation, Standards, and Certification Requirements

Wind turbine generator surge testing does not exist in isolation — it must meet documented standards and produce evidence that certifying bodies, turbine OEMs, and asset owners can verify. The relevant framework:

Applicable Standards

• IEC 60034-15 — Rotating electrical machines: Impulse voltage withstand levels for rotating AC machines with form-wound windings. Defines the test voltage requirements for turn insulation testing.
• IEC 60034-1 — Rotating electrical machines: Rating and performance. Includes routine test requirements including dielectric withstand tests for new machines.
• IEEE 522 — Guide for Testing Turn Insulation of Form-Wound Stator Coils for AC Electric Machines. Defines the surge test voltage formula and acceptance criteria.
• IEC 61400-1 — Wind turbines: Design requirements. Establishes the broader reliability and testing framework within which generator winding testing sits.

What the Test Report Must Include

For a surge test on a wind turbine generator stator winding to be accepted by a certifying body or turbine OEM, the test report should include:

• Stator identification: turbine serial number, generator model, stator serial number, rated voltage, rated power
• Test instrument identification: manufacturer, model, calibration certificate number and date
• Test parameters: applied test voltage, test date and time
• Test results: EAR value for each phase, pass/fail status, waveform record
• Tester identification: operator name and qualification
• Standard applied: IEC 60034-15 or IEEE 522 reference

Vivid Metrawatt digital surge testers generate automatic test reports via LABVIEW software integration, providing all the data fields required for a complete, auditable test record. For best practice on maintaining calibration and ensuring that instrument records remain valid for certification purposes, see our guide on how to maintain and calibrate your digital surge tester.

---

10. Frequently Asked Questions

What KV surge tester do I need for a 6.6KV wind turbine generator?

For a 6.6KV stator winding, the calculated surge test voltage is 2 × 6,600V + 1,000V = 14,200V. The correct instrument is the VM-15K (15KV Digital Surge Tester). If your acceptance test protocol also requires DC Hi-Pot testing, specify the VM-15KHR, which includes both surge and Hi-Pot in one instrument.

Can a standard surge tester used for motor testing also test wind turbine generators?

Only if its KV rating is appropriate for the generator’s stator voltage class. A 3KV model used for 415V industrial motors cannot adequately stress the insulation of a 3.3KV or 6.6KV wind turbine generator stator. Applying a 3KV instrument to a 6.6KV stator would produce a surge test voltage (3,000V) well below the required test voltage (14,200V), making the test meaningless. Always select the instrument based on the generator’s rated stator voltage — not based on what instruments are already available in the facility.

Should surge testing be performed with the rotor installed or removed?

For most wind turbine generator configurations, surge testing is most practically and meaningfully performed with the stator winding accessible — typically with the rotor removed. Testing with the rotor installed is possible but requires careful attention to potential coupling effects between stator and rotor windings. In a maintenance context where the rotor cannot be removed, consult the turbine OEM’s maintenance manual for the correct procedure. At manufacturing stage and post-rewind, testing is always performed on the stator assembly before rotor installation.

What is the EAR acceptance threshold for wind turbine generator stator testing?

The EAR (Error Area Ratio) acceptance threshold is not universally standardised at a single number — it varies by generator design, winding type, and the applicable standard or OEM specification. A common practice for new windings is an EAR threshold of 3–5% (a winding with all phases producing EAR below this threshold passes). For trending tests comparing current results against a commissioning baseline, any increase in EAR above 2–3% from the baseline is typically flagged for investigation, regardless of whether it crosses an absolute threshold. Always apply the threshold specified in the relevant standard (IEC 60034-15 or IEEE 522) or the turbine OEM’s test procedure.

How often should a wind turbine generator stator be surge tested during operation?

There is no universally mandated interval — maintenance intervals vary by turbine OEM, asset owner, and maintenance contract specification. Common practice for planned maintenance programmes is surge testing at each major maintenance interval (typically annually or biennially), particularly for generators with a history of high thermal or moisture stress. Surge testing should always be performed after any event that could have damaged the winding insulation — including an overvoltage event, a lightning strike nearby, flooding of the nacelle, or any internal electrical fault.

Does Vivid Metrawatt supply surge testers specifically for offshore wind applications?

Vivid Metrawatt’s digital surge tester range — including the 15KV and 25KV–40KV models with 80KV-insulated test leads — covers the voltage classes encountered in all current wind turbine generator types, including large offshore turbines. Wind energy is a confirmed served industry in Vivid Metrawatt’s product documentation. Custom solutions are also available — contact Vivid Metrawatt’s technical team to discuss requirements for specific turbine generator models or unusual test configurations.

What is the difference between a surge test and a partial discharge test for generator windings?

Surge testing detects turn-to-turn and coil-to-coil insulation faults by applying a high-voltage impulse and comparing waveforms — it is a pass/fail test on the winding’s current insulation integrity. Partial discharge (PD) testing detects localised electrical discharges within the insulation system that indicate deterioration beginning to develop but not yet causing a fault — it is more sensitive for incipient failures in medium and high-voltage windings, particularly in the slot insulation of form-wound coils. The two tests are complementary: surge testing is the standard quality gate at manufacturing and post-rewind; PD testing is more appropriate for in-service condition monitoring of high-value medium-voltage generators operating above 3.3KV.

---
