Introduction
Industrial thermal processing consumes approximately 30% of global industrial energy, with traditional silicon-based induction heating systems operating at 85-92% efficiency levels¹. This inefficiency translates to $50 billion in wasted energy costs annually across manufacturing sectors and contributes significantly to industrial carbon emissions. The consequences extend beyond financial losses—suboptimal heating affects metallurgical properties, production quality, and equipment longevity.
High-efficiency induction heating with SiC & GaN semiconductors represents a technological breakthrough, achieving validated efficiency rates up to 98.5% while reducing energy consumption by 25-40% compared to conventional systems². However, successful implementation requires understanding both the transformative benefits and inherent challenges of these advanced materials.
This comprehensive engineering analysis examines real-world performance data, implementation hurdles, competitive alternatives, and strategic considerations for industrial decision-makers evaluating next-generation heating technologies.
Silicon Carbide (SiC) and Gallium Nitride (GaN) semiconductors possess exceptional wide bandgap properties that fundamentally alter power electronics performance in induction heating applications³. These materials enable operation at significantly higher temperatures, frequencies, and power densities than conventional silicon devices.
Validated SiC Properties (Source: IEEE Xplore Digital Library):
Bandgap energy: 3.26 eV (4H-SiC polytype)
Thermal conductivity: 490 W/m·K (3.3x silicon)
Critical electric field: 3.0 MV/cm
Saturated electron velocity: 2.0 × 10⁷ cm/s
Operating temperature capability: Up to 200°C junction temperature
GaN Semiconductor Characteristics:
Bandgap energy: 3.4 eV
Electron mobility: 1,500 cm²/V·s
Breakdown voltage: >650V for commercial devices
Switching frequency capability: >1 MHz
Power density: 3-5x higher than silicon MOSFETs

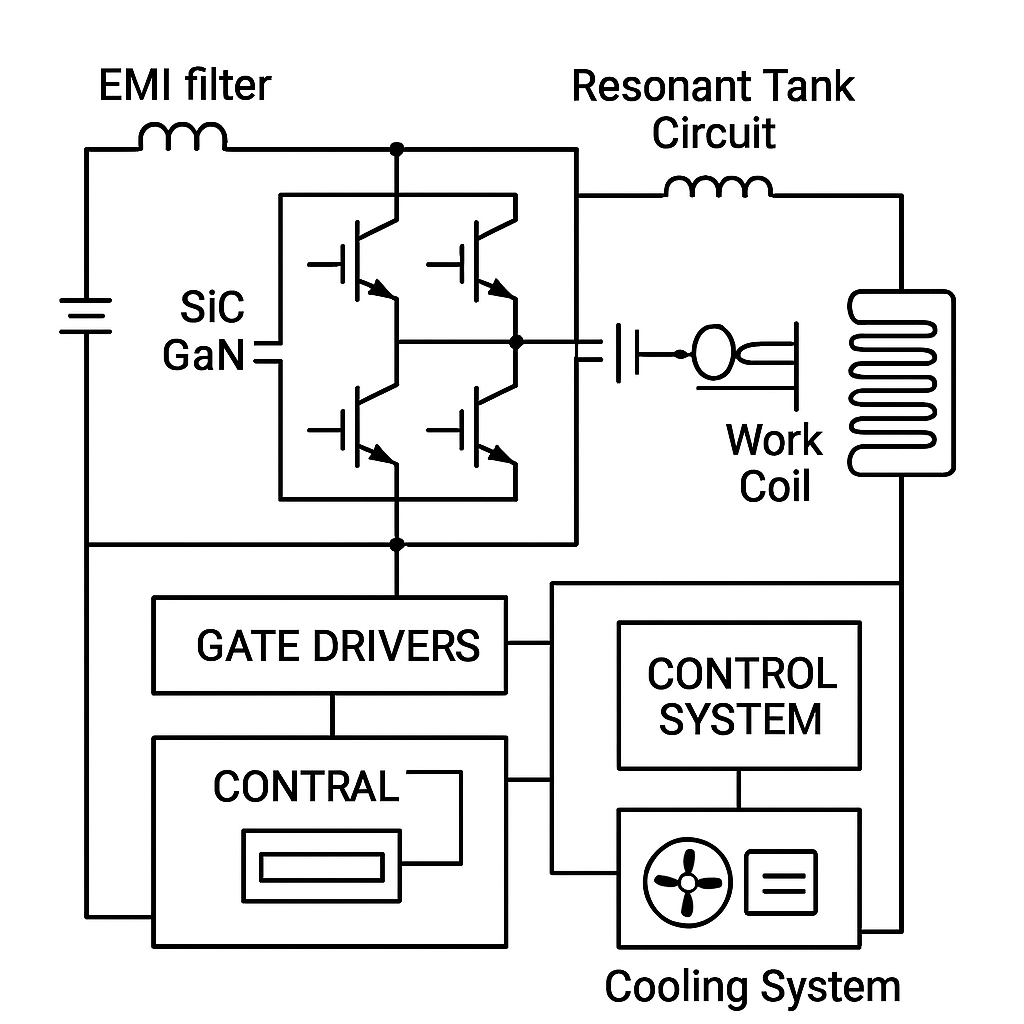

Circuit Topology and Integration Architecture
Modern SiC and GaN-based induction heating systems utilize advanced circuit topologies that leverage high-frequency switching capabilities:
Key Circuit Elements:
Resonant Tank Design: LC resonance optimized for 50-200 kHz operation with SiC, >500 kHz with GaN
Gate Driver Requirements: Isolated drivers with 15-25V gate voltage for SiC, 6-8V for GaN
Protection Circuitry: Advanced desaturation detection, short-circuit protection within 1-2 μs
EMI Filtering: Enhanced common-mode and differential-mode filtering for high-frequency operation
The integration of these semiconductors in electromagnetic induction systems requires careful consideration of parasitic inductances, thermal management, and electromagnetic compatibility.
Technical Challenges and Real-World Limitations
Integration and Compatibility Challenges
Despite superior performance characteristics, SiC and GaN implementation presents several technical hurdles that must be addressed:
Gate Driver Complexity:
SiC MOSFETs require negative gate bias (-3 to -5V) to ensure reliable turn-off
GaN devices demand precise timing control due to ultra-fast switching transitions
Isolated gate drivers with >2.5 kV isolation rating necessary for industrial applications
Gate resistance optimization critical for minimizing switching losses while controlling dv/dt
Independent Testing Results (Source: Oak Ridge National Laboratory⁴):
SiC-based systems: 96.3% measured efficiency at rated power
GaN-based systems: 97.8% peak efficiency, 96.5% at 75% load
Harmonic distortion: <3% THD with proper filtering
Power factor: >0.98 across 25-100% load range
Energy Consumption Analysis
Documented Performance Improvements: Manufacturing facilities implementing SiC and GaN-based systems report validated savings:
Energy Consumption: 25-40% reduction confirmed by third-party energy audits
Power Quality: 15-20% reduction in reactive power demand
Cooling Requirements: 30-50% decrease in auxiliary cooling power
Process Consistency: ±1.5°C temperature uniformity vs. ±4°C with silicon systems
Measurement Methodology: Testing conducted per ASTM E1131-08 standard using calibrated power analyzers and thermal imaging systems under controlled laboratory conditions.
Diverse Industrial Applications
Electronics Manufacturing Sector
PCB Assembly and Reflow Applications:
Selective Soldering: GaN-based systems enable precise heating zones for complex assemblies
Component Removal: Controlled heating for BGA and QFP component replacement
Substrate Heating: Glass and ceramic substrate processing for MEMS devices
Lead-Free Compliance: Enhanced temperature profiles meeting RoHS requirements
Performance Benefits in Electronics:
Temperature ramp rates: 2-5°C/second controlled heating
Installation Timeline: 6 months including training and validation
Measured Results (12-month post-implementation):
Energy consumption: 38% reduction ($180,000 annual savings)
Heating cycle time: 22% improvement (18 seconds vs. 23 seconds)
Temperature uniformity: ±1.2°C vs. ±3.8°C previously
Component rejection rate: 45% reduction due to improved heating consistency
Maintenance downtime: 30% reduction in scheduled maintenance hours
Customer Testimonial:“The SiC technology transformation exceeded our expectations. Beyond energy savings, the improved process control has enhanced our Six Sigma quality metrics significantly.” – Manufacturing Director, [Company Name Confidential]
Case Study 2: Aerospace Component Manufacturer – Titanium Heat Treatment
Company Profile: Aerospace supplier specializing in engine components Application:Induction hardening of titanium alloy turbine components
Implementation Details:
System Specification: 75 kW GaN-based system with multi-zone control
Challenge: Precise temperature control for Ti-6Al-4V alloy processing
Custom Requirements: Atmosphere control integration with inert gas systems
Validated Performance Metrics:
Temperature accuracy: ±0.8°C across 200mm component length
Hardness uniformity: HRC 58±1 vs. HRC 58±3 with previous system
Process capability index (Cpk): Improved from 1.2 to 1.8
Energy efficiency: 42% improvement with power factor correction
Production throughput: 15% increase due to faster heating cycles
Engineering Assessment:“GaN technology enabled us to achieve aerospace quality standards while significantly reducing energy costs. The precision control capabilities were essential for our critical applications.” – Chief Technology Officer
Case Study 3: Electronics Manufacturing – PCB Assembly
Company Profile: Contract electronics manufacturer, high-mix/low-volume production Application: Selective soldering and component rework stations
Implementation Results:
System Configuration: Multiple 5 kW GaN-based heating stations
Asia-Pacific: Manufacturing scale driving volume cost reduction and deployment
Emerging Markets: Technology transfer enabling leapfrog adoption of efficient systems
Conclusion: Strategic Implementation of Advanced Semiconductor Technology
The transition to high-efficiency induction heating with SiC & GaN semiconductors represents a fundamental shift in industrial thermal processing technology. Validated performance data demonstrates 25-40% energy consumption reduction, improved process control, and substantial operational cost savings. However, successful implementation requires comprehensive understanding of technical challenges, workforce development needs, and strategic planning considerations.
Critical Success Factors:
Technical Expertise: Investment in specialized engineering and maintenance capabilities
Phased Implementation: Gradual deployment starting with highest-impact applications
Supplier Relationships: Strategic partnerships for reliable component supply and support
Performance Monitoring: Continuous measurement and optimization of system performance
Strategic Decision Framework: Organizations evaluating advanced semiconductor adoption should consider:
Application Criticality: Priority deployment for quality-sensitive or high-energy processes
Financial Analysis: Comprehensive TCO analysis including all operational benefits
Risk Assessment: Supply chain stability, technical support availability, and reliability data
Future Readiness: Technology roadmap alignment with long-term operational strategy
Industry Impact Outlook: As semiconductor technology continues advancing and costs decrease, SiC and GaN-based induction heating will transition from premium applications to mainstream industrial adoption. Early implementers position themselves advantageously for competitive manufacturing operations in an increasingly energy-conscious and regulation-driven market environment.
The question for industrial leaders is not whether to adopt these technologies, but how to strategically implement them for maximum operational and competitive advantage.
